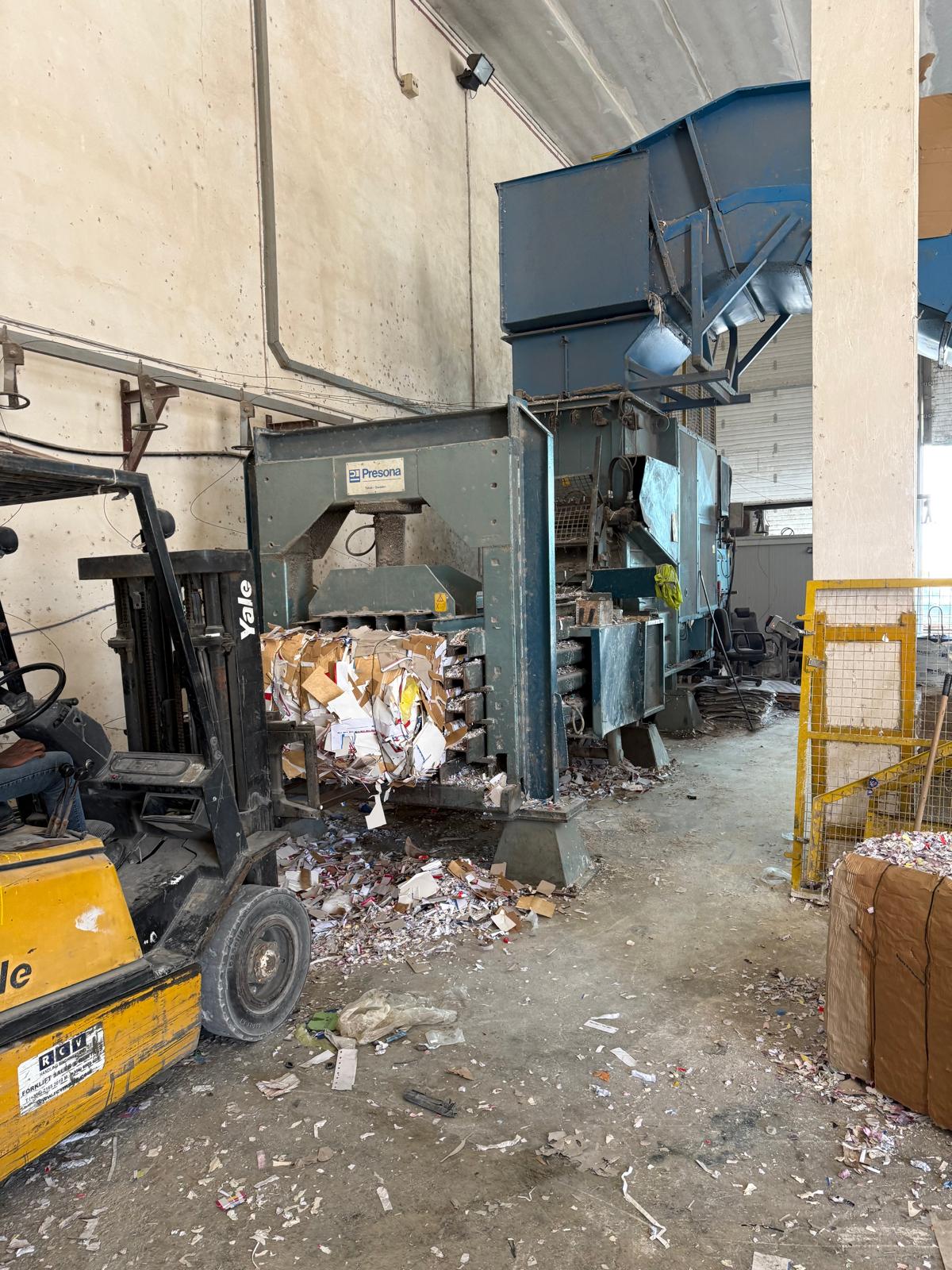

Presona LP 50 VH Hydraulic Baler
Presona LP 50 VH fully automatic horizontal hydraulic baler available for sale. Machine includes hydraulic power unit, automatic wire tying system, PLC controls, prepress and main press assemblies. Suitable for OCC, paper, plastics and industrial recyclables. Conveyor system not included.
Sale Includes
- Presona LP 50 VH horizontal baler
- Hydraulic unit
- Main press system
- Prepress system
- Friction channel
- Automatic wire tying system
- Needle assembly
- PLC control system
- Hydraulic power pack
- Electrical control cabinet
- Bale ejection system
Not Included
- Conveyor system
- Feeding conveyors
- External loading equipment
- Forklifts or auxiliary handling equipment
Machine Overview
Main Technical Specifications
Specification | Details |
Manufacturer | Presona AB |
Model | LP 50 VH |
Machine Type | Fully Automatic Horizontal Hydraulic Baler |
Maximum Hydraulic Pressure | 25 MPa |
Press Force | 500 kN |
Power Supply | 220–600V AC, 3 Phase |
Control Voltage | 24V DC PLC |
Bale Weight | Up to approx. 800 kg |
Strapping | Automatic Multi-Wire Tying |
Operation | Continuous Automatic Operation |
Materials Suitable for Baling
- OCC / cardboard
- Waste paper
- Newspapers & magazines
- Plastics
- Packaging waste
- General recyclable materials
Main Features
Hydraulic Pressing System
- Heavy-duty hydraulic main press
- Hydraulic prepress system
- Adjustable friction channel pressure
- Continuous compaction operation
Automatic Wire Tying
- Fully automatic multi-wire tying
- Hydraulic needle assembly
- Wire twisting and cutting system
PLC Controlled
- Automatic operating cycles
- Error monitoring system
- Programmable material settings
- One-man operation capability

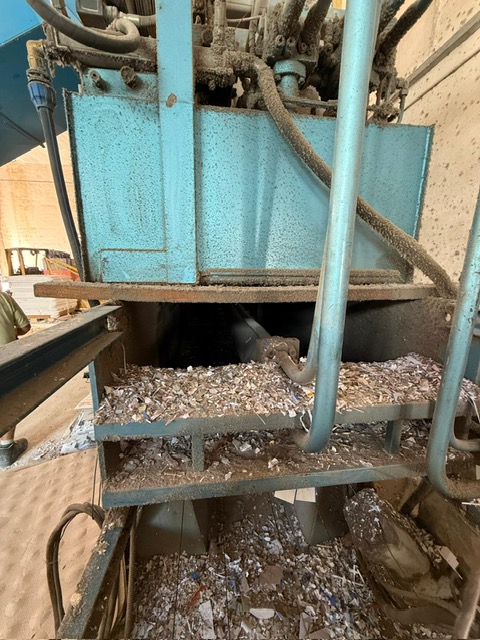

Hydraulic Unit
The hydraulic system includes:
- Hydraulic pumps
- Oil tank
- Pressure regulation valves
- Oil filters
- Pressure transmitter
- Oil temperature monitoring
Optional systems mentioned in the manual:
- Oil cooler
- Oil pre-heater
- Remote display
Automatic Bale Tying System
The LP 50 VH features:
- Hydraulic needle assembly
- Automatic wire feeding
- Automatic twisting and cutting
- Multi-wire bale securing system
Ideal Applications
- Recycling facilities
- Waste transfer stations
- Cardboard recycling operations
- Plastic recycling plants
- Industrial waste processing
- Distribution & logistics centres
